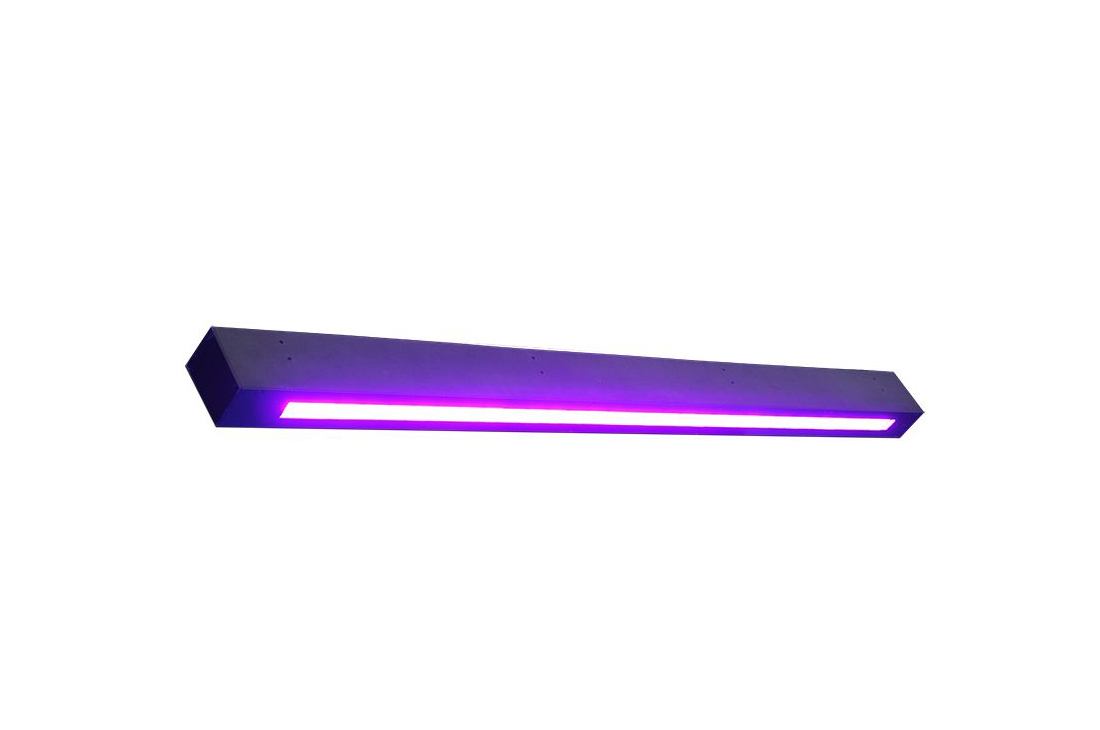

This series UV LED curing system already used in different kind of screen printer.
Back to list >> Product Feature
Light intensity can be dimmable according printer speed
Light intensity and be adjust and display
light can on/off part or full according different print size
temperature display and over temperature control
Single UV lamp can be controlled independently
Warning while UV LED lamp bad
Product application
Our UV light curing system have already successful install on different types of screen printer and offset printers.
Product Specification
| Model | Light area(MM) | Wavelength(NM) | Light intensity(W/CM2) | Cooling Method | Electric Power |
| FWS260*20 | 260*20 | 395 | 30 | Water cooling | 2000W |
| FWS260*20 | 260*20 | 395 | 30 | Water cooling | 350W |
FWS364*20 | 364*20 | 395 | 30 | Water cooling | 2800W |
| FWS468*20 | 468*20 | 395 | 30 | Water cooling | 3600W |
| FWS520*20 | 520*20 | 395 | 30 | Water cooling | 4000W |
| FWS676*20 | 676*20 | 395 | 30 | Water cooling | 5200W |
| FWS884*20 | 884*20 | 395 | 30 | Water cooling | 6800W |
| FWS1092*20 | 1092*20 | 395 | 30 | Water cooling | 8400W |
| FWS1456*20 | 1456*20 | 395 | 30 | Water cooling | 11200W |
| FWS1508*20 | 1508*20 | 395 | 30 | Water cooling | 11600W |
