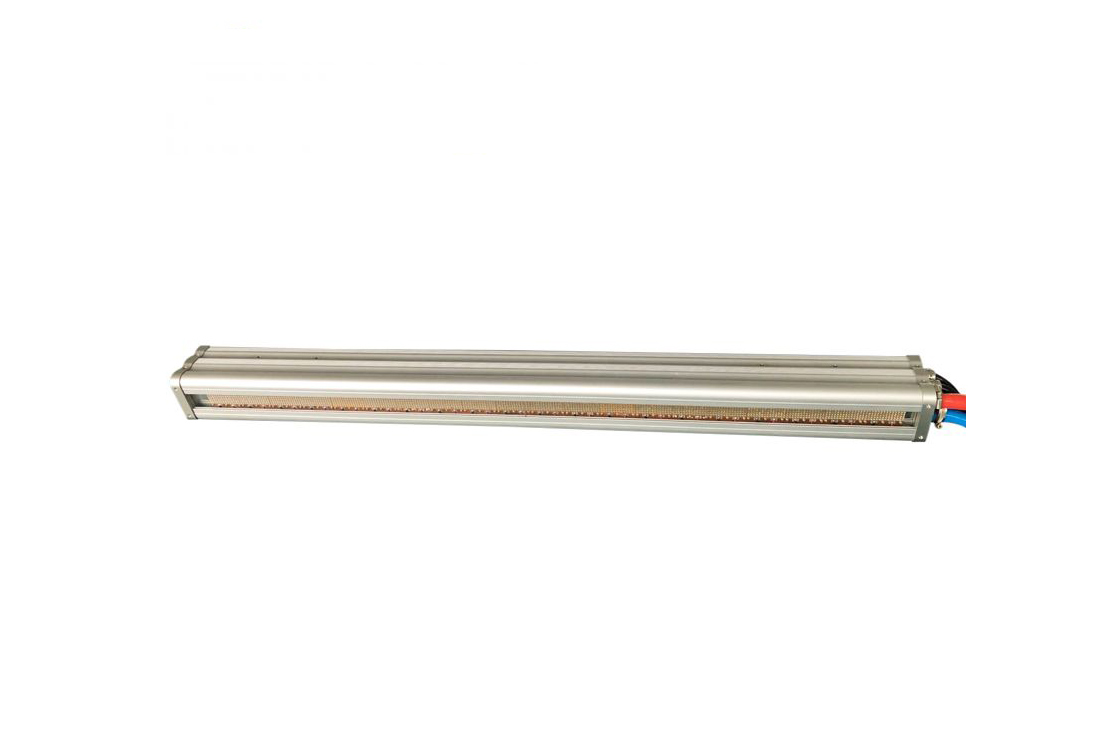

Our UV led for offset system use seamless splice design, we can produce different size use our stand UV LAMP, also easy for repair and replace. The Max light intensity can be 30W/cm2, the max light intensity can be 8.8W/cm2 at the distance 90MM.
Back to list >> UV LED for Offset Printer – Product Specification
We can produce difference lamp size according customer requirement.
Product Feature
1. High light intensity, can meet the high speed of offset printer. Our UV led curing system can curing well under 10,000sheets/hour
2. High quality and convenient controller, easy installation and work for different offset printer.
3.Our UV LED offset printing system features a seamless splice design. We offer three different models that can be easily repaired and replaced.
Product application
Our UV LED Curing system is an excellent choice for UV LED offset printing that can be successfully used in different models of offset printers. Including the bellowed model but not all
Man Roland: Roland 500, Roland 700
Heiderberg: CD102,CD105,CD740,MO650, SM74
Komori: L440, L428,L429
Product Specification
| Model | Light area(MM) | Wavelength(NM) | Light intensity(W/CM2) | Cooling Method | Electric Power |
| BF75*8 | 75*8 | 395 | 30 | Air cooling | 200W |
| BF150*8 | 150*8 | 395 | 30 | Air cooling | 350W |
BF225* | 225*8 | 395 | 30 | Air cooling | 600W |
