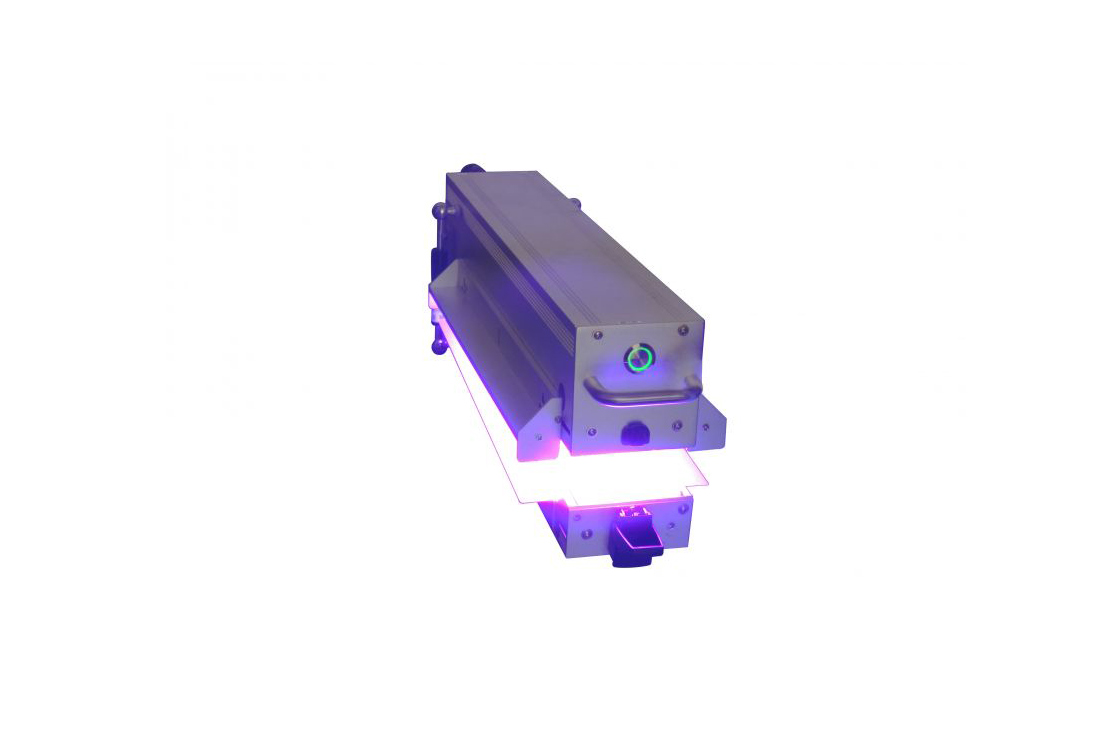

Our UV LED curing system already used in kind of Label printer which including intermittent letterpress label printer, PS label printer and so on.
Back to list >> Product Feature
High light intensity
Light intensity auto adjust according printer speed
Light intensity and be adjust and display
light can on/off part or full according different print size
temperature display and over temperature control
Single UV lamp can be controlled independently
Warning while short circuit
Product Specification
We can produce difference lamp size according customer requirement.
Product Specification
| Model | Light area(MM) | Wavelength(NM) | Light intensity(W/CM2) | Cooling Method | Electric Power |
| FLW260*20 | 260*20 | 395NM/Multi wavelength | 12-20 | Water cooling | 1200W |
| FLW312*20 | 312*20 | 395NM/Multi wavelength | 12-20 | Water cooling | 1500W |
| FLW468*20 | 468*20 | 395NM/Multi wavelength | 12-20 | Water cooling | 2300W |
