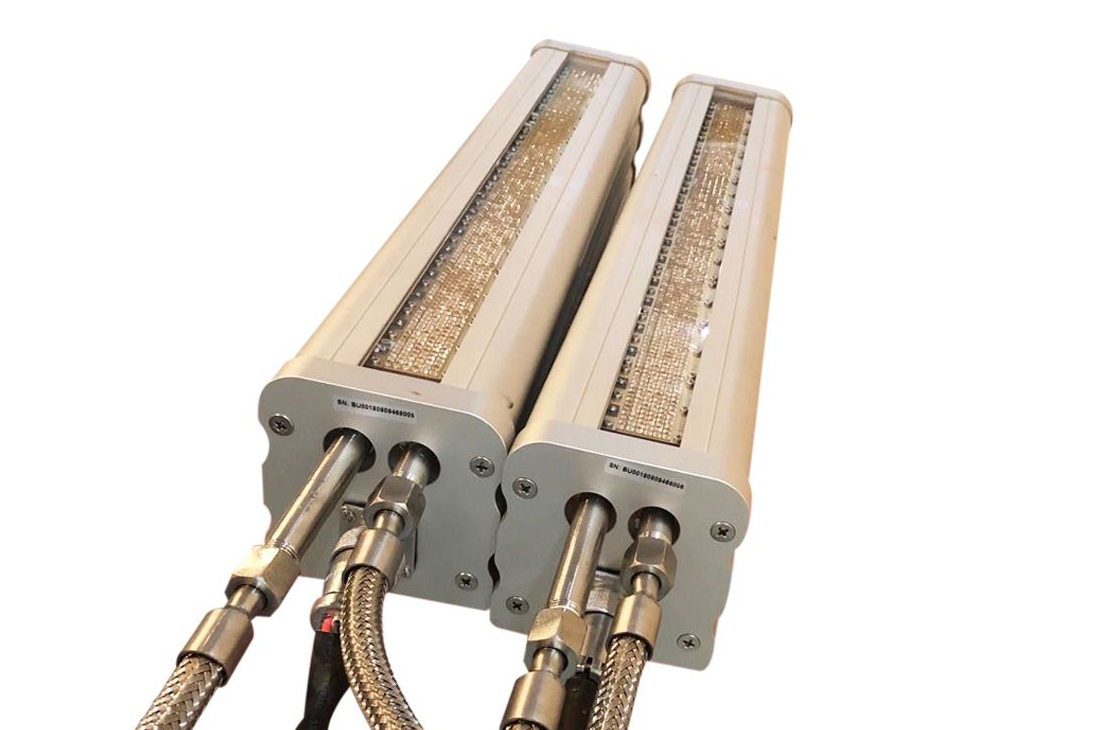

This series UV LED curing system already used in different kind of flexo printer, including Laminated type flexo printer, Satellite type flexo printer, Unit type flexo printer and so on.
Back to list >> Product Feature
Light intensity can be dimmable according printer speed
Light intensity and be adjust and display
light can on/off part or full according different print size
temperature display and over temperature control
Single UV lamp can be controlled independently
Warning while UV LED lamp have problem
Product Applicaions
Our UV LED Curing system have already successful used in different models of flexo printer. Including Mark Andy Omet Bobst Gallus and Taiyo flexo printer
Product Specification
| Model | Light area(MM) | Wavelength(nm) | Light intensity(W/CM2) | Cooling Method | Electric Power |
| FWF260*20 | 260*20 | 395 | 30 | Water cooling | 2000W |
| FWF312*20 | 312*20 | 395 | 30 | Water cooling | 2400W |
| FWF364*20 | 364*20 | 395 | 30 | Water cooling | 2800W |
| FWF468*20 | 468*20 | 395 | 30 | Water cooling | 3600W |
| FWF520*20 | 520*20 | 395 | 30 | Water cooling | 4000W |
| FWF676*20 | 676*20 | 395 | 30 | Water cooling | 5200W |
| FWF884*20 | 884*20 | 395 | 30 | Water cooling | 6800W |
| FWF1092*20 | 1092*20 | 395 | 30 | Water cooling | 8400W |
| FWF1456*20 | 1456*20 | 395 | 30 | Water cooling | 11200W |
| FWF1508*20 | 1508*20 | 395 | 30 | Water cooling | 11600W |
