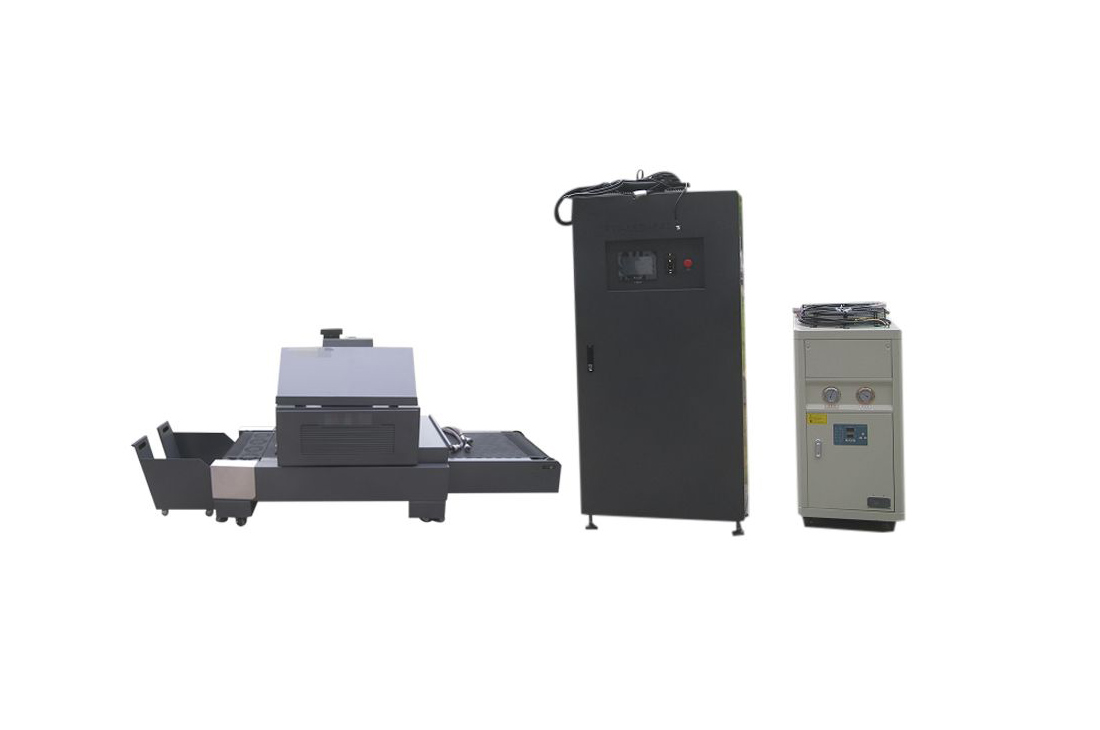

This UV LED curing system is special designed for small size sheetfed offset printer. Such as Heiderberg GTO46 GTO52 SM52, 1-4 colors
Back to list >> Product Features
1)Use one UV LED lamp+ one mercury UV lamp
2)Both normal UV ink, UV varnish and UV LED ink can dry well
3)Very easy for installation
Product Specification
| Power supply | 380V/50HZ |
| LED head | 1PCS |
| LED total power | 5544W |
| LED curing area | 535*60MM |
| Mercury lamp power | 6KW*1PCS |
| Cooling method | water cooling(LED)+air cooling(Mercury) |
| Belt width | 520MM |
| Speed range | 20-70M/Min |
| Belt Material | Teflon belt |
