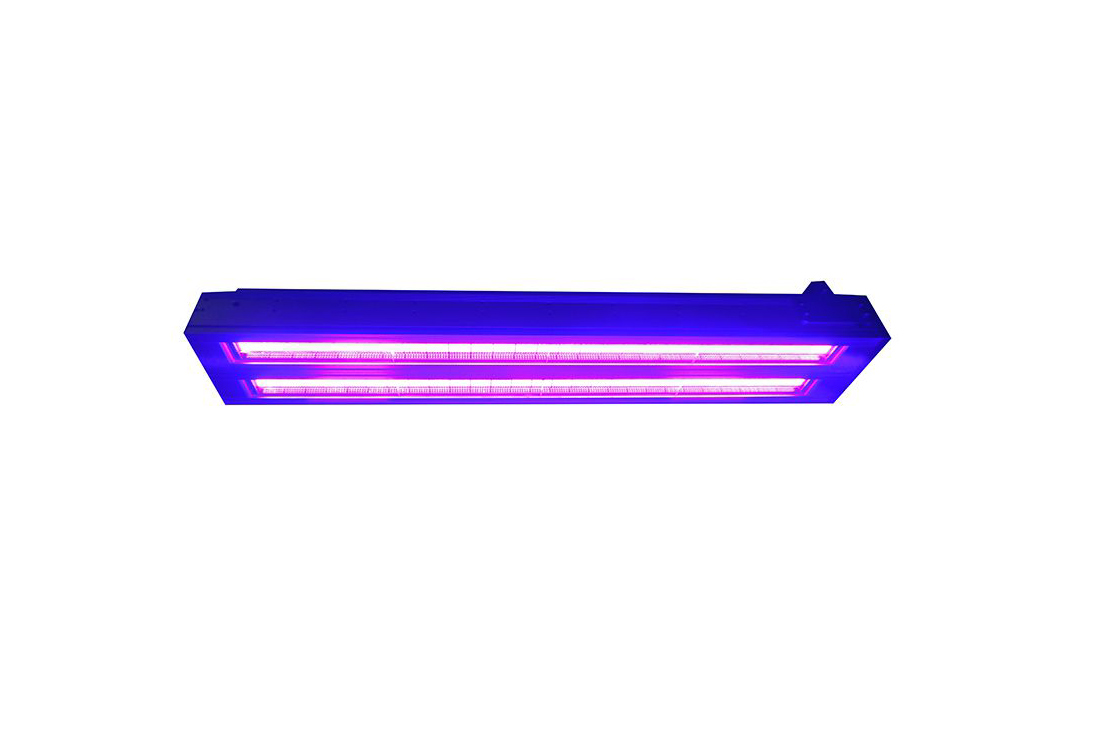

This series(Double UV LED series) UV LED curing system already used in gravure printer, high speed flexo printer and web offset printer.
Back to list >> Product Features
This series(Double UV LED series) UV LED curing system already used in gravure printer, high speed flexo printer and web offset printer.
Product Specification
FWH series in Gravure printer which printing speed MAX 300M/Min
| Model | Light area(MM) | Wavelength(NM) | Light intensity(W/CM2) | Cooling Method | Electric Power |
| FWH936*40 | 936*40 | 385 | 25 | Water cooling | 14.4KW |
| FWH1040*40 | 1040*40 | 385 | 25 | Water cooling | 16KW |
| FWH1352*40 | 1352*40 | 385 | 25 | Water cooling | 20.8KW |
FWH series in High speed flexo printer which printing speed MAX 300M/Min
| Model | Light area(MM) | Wavelength(NM) | Light intensity(W/CM2) | Cooling Method | Electric Power |
| FWH260*40 | 260*40 | 395 | 30 | Water cooling | 4000W |
| FWH312*40 | 312*40 | 395 | 30 | Water cooling | 4800W |
| FWH364*40 | 364*40 | 395 | 30 | Water cooling | 5600W |
| FWH468*40 | 468*40 | 395 | 30 | Water cooling | 7200W |
| FWH520*40 | 520*40 | 395 | 30 | Water cooling | 8000W |
| FWH676*40 | 676*40 | 395 | 30 | Water cooling | 10.4kW |
| FWH884*40 | 884*40 | 395 | 30 | Water cooling | 13.6kW |
| FWH1092*40 | 1092*40 | 395 | 30 | Water cooling | 16.8kW |
| FWH1456*40 | 1456*40 | 395 | 30 | Water cooling | 22.4kW |
FWH1508*40 | 1508*40 | 395 | 30 | Water cooling | 23.2kW |
